ACP T-Grid System

ACP Grid (T Grid) is made of Galvanized Iron (GI) with High Quality Zinc Coating rolled with Pre Painted Hot Pressed White Coil. The entire range is good quality and consistent finish.

Product Specification

We, Ramria Associates Pvt. Ltd. take the privilege to introduce ourselves as one of the foremost manufacturers and importers of Grid Ceilings T-Section. Extensively used in the construction industries, our offered ceiling T-sections are appreciated in the market for their features such as fast & simple usage, excellent durability and easy installation. Available at cost effective prices, our customers can avail this Grid Ceilings T-Section from us in several specifications.

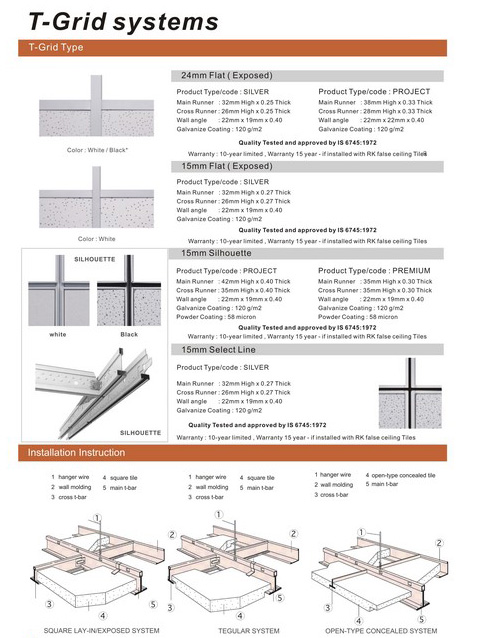

tee bar grid system is the economical framing suspension using for mineral fiber, gypsum and metal lay in ceiling tiles. Tee bar has flange width and consists of main runner and cross tee on length 600mm and 1200mm, mainly tee bar capping is pre painted polyester coating as per standard white and other colours are available on request. Tee bar system has been designed for easy and fast erection by stab-in-coupling without using of special tools. Silhouette grid with 6 mm reveal is available either in white or black. For the assembly of clip in system we provide spring tee, primer c channel system and edge trim along with related accessories.

Product Specification

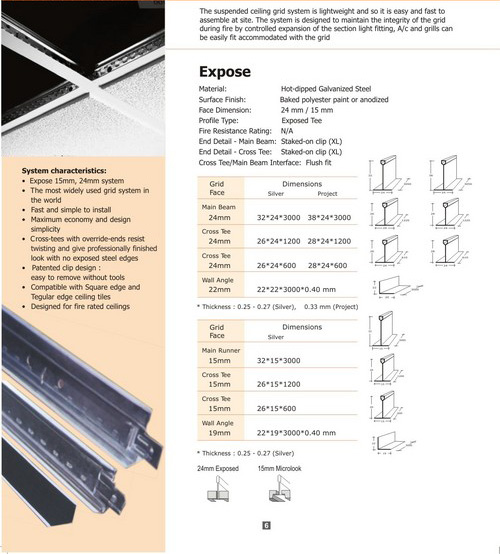

We have achieved high acclamation in the hardware industry for offering a top-of-the-line gamut of Ramria Exposed Grid to our respected clients. In order to meet the industry quality standards, we are manufacturing our wide range of exposed grid as per their quality norms. Our offered exposed grids find huge application in soffits and exterior metal ceilings. Simple to install, rugged in design and accurate in dimensions are some of the key features of our Ramria Exposed Grid.

Main Runner 3000 mm Grid Item Code Length Width Height Thickness Pcs/Carton Qty/m2 Main Runner Project 0.33 3000 mm 24 mm 38 mm 0.33 mm 25 0.25pcs Cross Tee 1200 mm Grid Item Code Length Width Height Thickness Pcs/Carton Qty/m2 Cross Tee Project 0.33 1200 mm 24 mm 28 mm 0.33 mm 60 1.20pcs Cross Tee 600 mm Grid Item Code Length Width Height Thickness Pcs/Carton Qty/m2 Cross Tee Project 0.33 600 mm 24 mm 28 mm 0.33 mm 60 1.20pcs Wall Angle 3000 mm Grid Item Code Length Width Height Thickness Pcs/Carton Qty/m2 Wall Angle Project 0.33 3000 mm 22 mm 22 mm 0.40 mm 30 0.20pcs Product Certification: Tee-grid 24 MM White - Project (0.33) is tested and approved by IS 6745: 1972 for promoting and marketing the products in confidence.
